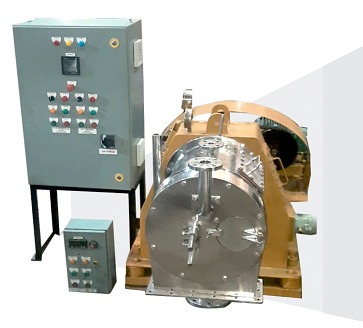

Hydraulic Pusher Centrifuge
Hydraulic Pusher Centrifuge
Pusher Advantages :
Continuous Separation
Low Energy
Consumption
Low Maintenance Cost .
Application :
Bulk Chemicals
Fine Chemicals
Fertilizers
Salt Industries
Salt Recovery Plant
Pharmaceutical Industries
Materials of Construction :
SS 304/ SS 316 / HASTELLOY / SUPER DUPLEX -2507 / Titanium
| Model | MP 150 | MP 200 | HP 200 | HP 250 | Hp 300 | HP 350 | HP 400 | |
|---|---|---|---|---|---|---|---|---|
| Basket Dia | mm | 150 | 200 | 200 | 250 | 300 | 350 | 400 |
| No. OFStages | ----- | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2/3 |
| Max. Speed | rpm | 3200 | 3000 | 3200 | 3000 | 2800 | 2500 | 2200 |
| No. OFStroke | spm | 30-60 | 40-80 | 50-120 | 50-120 | 50-120 | 50-120 | 50-120 |
| Max. G-Force | xg | 850 | 1000 | 1140 | 1250 | 1300 | 1215 | 1075 |
| Main Motor | Hp/rpm | 3/2880 | 5/2880 | 5/2880 | 7.5/2880 | 10/2880 | 10/2880 | 15/1440 |
| Pump Motor | Hp/rpm | 2/1440 | 3/1440 | 3/2880 | 5/2880 | 7.5/2880 | 7.5/2880 | 10/2880 |
| Dim ension(L) | Mtr. | 1.1 | 1.5 | 1.9 | 2 | 2.1 | 2.2 | 2.2 |
| (W) | 1000 | 0.55 | 1.1 | 1 | 1.1 | 1.1 | 1.1 | 1.2 |
| (H) | 1000 | 0.53 | 1 | 1.1 | 1.1 | 1.5 | 1.2 | 1.25 |
| Weight | Kgs. | 300 | 750 | 900 | 900 | 1450 | 1650 | 1850 |
| Nacl Cap. | Ton/hr. | 0.2 | 0.5 | 0.6 | 1.2 | 2.4 | 3.5 | 5 |
