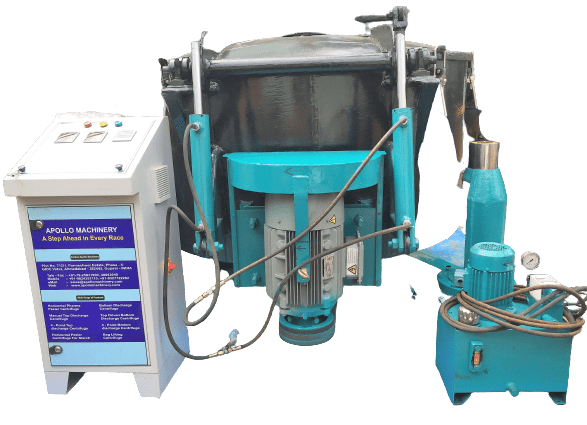

Bag Lifting Centrifuge
Bag Lifting Centrifuge
The Manual Top discharge centrifuge is modified to detach and lift the Top-capring of the basket along with filter bag, attached to it. The bottom opening of the filter bag allow the dried solids, to be discharge of solids is easy and fast.
| Model | Basket Dia mm |
Basket Depth mm |
Capacity Vol Ltrs. Charge Kgs. |
Drive HP | |
|---|---|---|---|---|---|
| 20 BLC - 4P & 3P | 500 | 250 | 40 | 25 | 3/2 |
| 24 BLC - 4P & 3P | 600 | 300 | 75 | 50 | 5/3 |
| 36 BLC - 4P & 3P | 900 | 480 | 200 | 150 | 7.5 |
| 48 BLC - 4P & 3P | 1200 | 550 | 280 | 250 | 15 |
| 60 BLC - 4P & 3P | 1500 | 550 | 500 | 450 | 25/20 |
